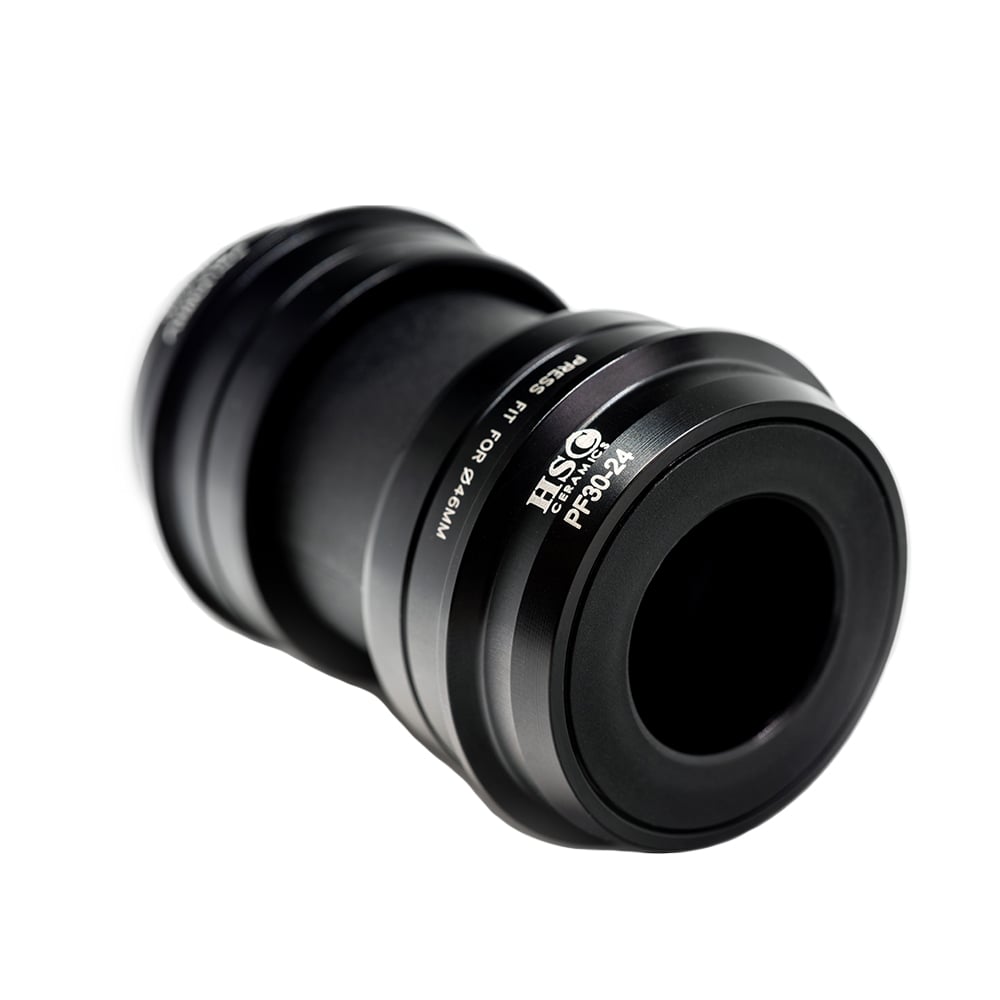

Ceramic PressFit30 Shimano Bottom Bracket

Pressfit30 Shimano bottom bracket Pressfit30 Shimano Ceramic Bottom Bracket Use "Product Finder" to find the compatible bottom bracket Press Fit 30(PF30) is based on the BB30 system and introduced in 2009. Instead of the bearings sitting inside the frame shell directly, PF30's bearings are inserted into plastic cups that are easier to press into the frame. The PF30 system allows adding an integrated sealing system, which helps prolong bearing life. With the plastic cups, the PF30 bottom bracket frame shell has a diameter of 46mm (compared to 42mm for a BB30) and the same width, 68mm for Road or 73mm for MTB. To accommodate Shimano 24mm spindle crankset, we have developed this PF30 Shimano ceramic bottom bracket to adapt Shimano 24mm cranks in a PF30 frame. Features: - Improved sealing structure - Integrated design to fit Shimano 24mm cranks, no additional adapter required - Integrated seal and pre-assembled HSC ceramic bearings - ABEC 7 standard alloy steel bearing races - Grade 3 Si3N4 ceramic balls - highest precision in the market - Pre-lubricated with HSC Ceramic Grease and sealed. - Specially designed Nylon bearing retainer for more shock absorbing and less friction - Light touch Dual lip rubber seals for a better protection - 120 g Frame requirements: Pressfit 30 standard frame (non-thread) with shell ID 46mm, width 68mm Cranks compatibility: 24mm spindle cranks, e.g. Shimano Dura Ace, Shimano Ultegra, Shimano 105, Shimano Tiagra, FSA etc. (only works on a 68mm width frame, not on an 86.5mm width frame) Learn more about the compatible pressfit installation tool Learn more about the compatible bottom bracket removal tool Bundle Deal: Bottom Bracket Jockey Wheel - Save $20 Code: BUNDLEDEALJW Add a set of ceramic Jockey Wheel
