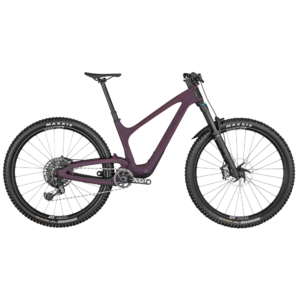

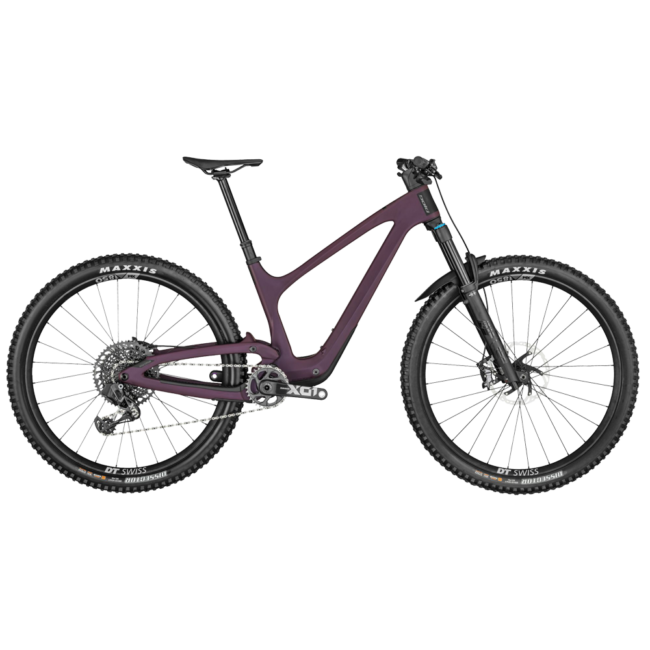

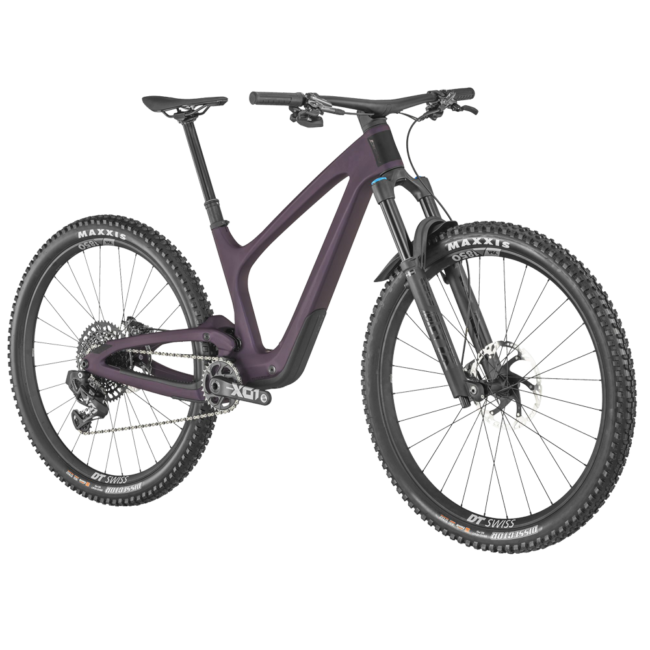

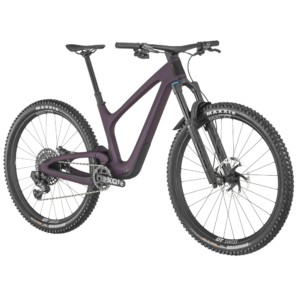

BOLD Bike Linkin 135 Ultimate pebble purple

SPECIFICATIONS FRAME Bold Linkin 135 / Carbon HMX Integrated Suspension Technology / IST VP Vario Tech, Head angle and BB height / Syncros Cable Integration System BB92 / UDH Interface / 12x148mm with 55mm Chainline FORK FOX 36 Float Performance Elite Grip 2 Air HSC – LSC – HSR- LSR adjustable / Kabolt 15x110mm axle 44mm offset / tapered steerer 140mm travel REAR SHOCK FOX NUDE 5T EVOL Trunnion Custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend Custom large Air volume / DPS / Reb. Adj. T185X55mm / Travel 135-90-Lockout REMOTE SYSTEM TracLoc Technology Rear Suspension & Dropper Remote 3 Rear Suspension modes REAR DERAILLEUR SRAM X01 Eagle AXS / 12 Speed Wireless Electronic Shift System SHIFTERS SRAM GX Eagle AXS Rocker Controller CRANKSET SRAM X01 DUB Eagle Carbon crankarm 55mm CL / 32T BB-SET SRAM DUB PF 92 MTB Wide / shell 41x92mm CHAIN SRAM CN GX Eagle CASSETTE SRAM GX XG1275 / 10-52 T BRAKES Shimano XT M8120 4 Piston Disc ROTOR Shimano SM-RT76 / 6 Bolt / 203/F and 180/R HANDLEBAR Syncros Hixon iC Carbon Size S & M 15mm rise / Size L & XL 25mm rise back sweep 8° / 780mm Syncros Endurance lock-on grips SEATPOST Syncros Duncan Dropper Post 1.5 34.9mm Size S 170mm / Size M, L & XL 200mm SEAT Syncros Tofino 1.5 Regular Titanium rails HEADSET Syncros – Acros Angle adjust & Cable Routing HS System Stainless / -0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB WHEELSET DT Swiss XM 1850 Spline 6 Bolt F: 15x110mm / R: 12x148mm 30mm Tubeless ready rim 28H / XD Driver Syncros Axle w/Removable Lever with Tool FRONT TIRE Maxxis Dissector / 2.4″ / 60TPI Foldable Tubeless Ready / EXO REAR TIRE Maxxis Dissector / 2.4″ / 60TPI Foldable Tubeless Ready / EXO EXTRAS Save the Day Kit SRAM AXS Powerpack Syncros Fork Fender ACCESSORIES Syncros Eco Sealant APPROX WEIGHT IN KG 13.9kg / 14.3kg FEATURES For the most passionate riders seeking the most progressively engineered bikes, the all-new LINKIN provides the industry’s most sophisticated, state-of-the-art technology and design features. MULTI TOOL To get you back on the trail fast, the Syncros MATCHBOX SL-CT Multi-Tool is hidden inside the frame covering most adjustments. There when you need it. REAR AXLE TOOL The bike is equipped with a rear axle tool which features a T25, T30 and a 6 mm allen key all in one. With these three options you can adjust all pivot hardware and nearly everything else there is to adjust on the bicycle. DROPPER POST Incredible dropper post compatibility and unlimited positioning possibilities thanks to the horizontal layout of the rear shock in combination with the Internal Suspension Technology. Meaning a 200mm travel dropper coupled with a slammed seat position is no problem for the LINKIN. CHAIN MANAGEMENT The bike also features chain management with an upper chainstay & seatstay protection and a chain guide to protect your bike and to keep things nice and quiet. TECHNOLOGIES With the goal to create the best ride quality in combination with a clean, integrated design, Bold has discarded the principles of classic full-suspension frame design. Bold has redefined the traditional linkage systems to suit their frame’s kinematics and suspension characteristics by integrating the rear suspension into the frame design. Your browser does not support this video. INTERNAL SUSPENSION TECHNOLOGY Frame stiffness, lowest center of gravity and optimum shock performance are the key benefits to our Internal Suspension Technology. The condition of the rear shock has a significant impact on suspension performance. The shock is always protected from dirt, water and crashes to ensure it is functioning at its best. As a result, the bike benefits from better handling, longer shock service intervals and a more stable, confidence inspiring ride. IST VP With the shock placed internally, we are able to design an ultra-compact linkage system for low weight and high stiffness. The linkage is directly attached to the shock and mounted to an axle inside the frame, meaning the suspension pivots no longer must be constructed around the frame. This makes our link shorter than any other traditional suspension platform. Using a Virtual Pivot linkage design improves the suspension feel, pedaling, and braking response to work with maximum efficiency. Our kinematic suspension curve gives supple small bump sensitivity and, therefore, exceptional traction characteristics, excellent support in the mid-stroke, and a controlled deep stroke for perfect bottom-out control. Your browser does not support this video. Your browser does not support this video. REAR SHOCK The LINKIN comes with either a FOX or ROCK SHOX shock option unlocking 150 mm or 135 mm of travel, both options featuring our patented NUDE Technology. Accessible mid-ride through the TracLoc System, the NUDE Technology enables an air volume adjustment to effect dynamic travel, making it the most innovative air shock on the market. Accessing the shock is possible via a cover in the down tube area. This makes it easy to adjust rebound, compression, and shock pressure as well as access the cable of the TracLoc Suspension System. Shock bolts are easily accessible from the outside. SHOCK LINKAGE The LINKIN is available in 150 mm travel, as well as a sportier version with 135 mm of rear wheel travel. The travel options can be set by replacing the Shock Linkage at the bottom bracket without having to need to switch to a different shock. The different Shock Linkage gives the LINKIN the flexibility to have both travel options in one frame platform. TRAVEL INDICATOR Setting the right Sag can easily be done via a magnet-equipped travel indicator on the outside. The end stroke travel can also be checked on the smartly designed travel indicator for perfect bottom-out control. Your browser does not support this video. Your browser does not support this video. TRACLOC TracLoc manages the Sag effect in several ways. Whereas most systems only increase low-speed compression in an effort to gain pedaling efficiency, TracLoc allows you to change not only compression damping but also to change the spring curve, dynamically altering the geometry of the bike. In Traction Mode, the shock is not only firmer, but it has dynamically less travel. The bike sits higher, maintains a steep seat angle for those climbs, and becomes more agile. In addition, the LINKIN has a Lockout Mode for going up the steepest trails in the most efficient manner possible. FLIP CHIP Having the ability to tune the bottom bracket height and head angle allows you to optimize the geometry and handling for you and your trails. With the Flip Chip on the BOLD Variotec you can change the bottom bracket height by /- 6.3 mm while changing the head angle by /- 0.4 degrees, giving the LINKIN frame the availability to be customized off-the-shelf. Your browser does not support this video. Your browser does not support this video. HEAD ANGLE ADJUST You can adjust the head angle by effective /- 1.0 degree slacker or steeper. This can be done by rotating the headset cups 180 degrees. GEOMETRY Progressive geometry in combination with the innovative Internal Suspension Technology brings the perfect mix of balance and control to the LINKIN. The shock is mounted in the lowest possible position inside the front triangle thanks to this design. This central and low mounting point for the shock, rocker link and pivot, but also the bottle cage lead to a very low center of mass, giving superb handling capabilities.
