AVL-JCD Jump-Crawl Detection System

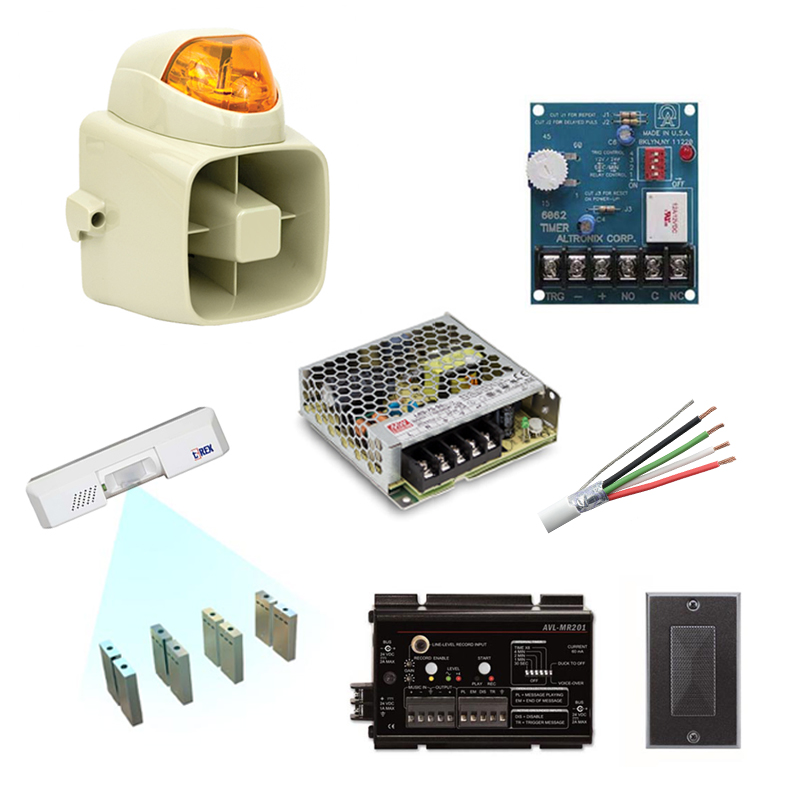

Description Prevent any climbing over or crawling underneath secured barriers. Jump and Crawl Detection Systems work using Infrared Beams and Horn/Strobes with Digital Messaging. An optical sensor detects the passage of an individual through an area, and if unauthorized, triggers an alarm and audio announcement.   FEATURES / COMPONENTS T-Rex Optical Detector: This smart passage detector can be adjusted to detect an individual in a doorway or turnstile lane. Mounts on the ceiling or wall over the area. Small Footprint Siren/Horn Strobe: Indoor/outdoor armored alarm unit with audio and visual output. The full-featured siren consists of a single tone that delivers a warble sound output and colored light. Digital Message Repeating: A recorded loudspeaker announcement system helps you communicate to individuals at your entrance. 12V DC Switching Power Supply: 75W single-output enclosed power supply with a small footprint and mesh casing. Low load, low-heat output operates without a fan. Timer Module Relay: This programmable timer with relay allows you to adjust the length of time the siren goes off. Wiring Cable: 1 Box 18/4 Shielded Plenum. 1 Point-to-Point Schematic     We also offer a complete line of Turnstiles, Gates, Locks, Power Supplies, Switches, Keypads & Readers. Upgrades are available upon request.
